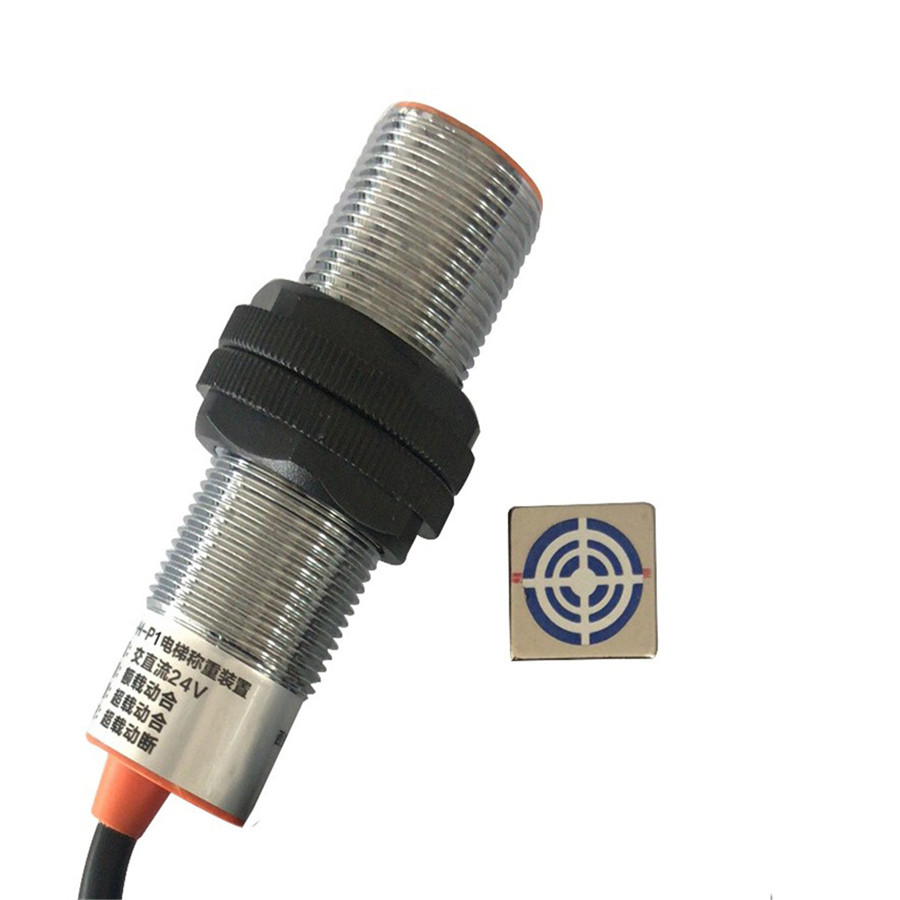

Working principle: This system is based on the principle of elastic changes of the elevator moving car bottom according to the load, and uses Hall sensors to detect its displacement changes, thus achieving a method for detecting elevator car overload. Main features: 1. Non contact induction working mode, without mechanical movement, directly installed at the original overload switch of the elevator, without changing the elevator car structure; 2. Using high-strength induction magnets to maximize the system's anti-interference ability; 3. The electrical performance meets the requirements of the International Electrotechnical Commission (IEC) standards; High positioning accuracy, small size, easy installation and debugging. Simple structure and low price.
System composition: Integrated
Debugging method: manual overload positioning
System output: overload 1 open 1 close
Installation method: Suitable for car bottom installation
Manual adjustment action range: 8-15mm
